Standard Shipping Container Dimensions & Specifications

Internal and external dimensions, capacity, tare weight, and max payload for all common container types.

Container Type	Image	Internal Length (mm)	Internal Width (mm)	Internal Height (mm)	Door Width (mm)	Door Height (mm)	External Length (mm)	External Width (mm)	External Height (mm)	Capacity (m³)	Tare Weight (kg)	Max Payload (kg)

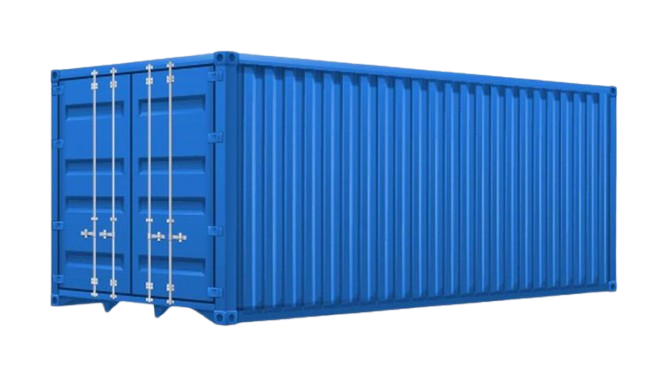

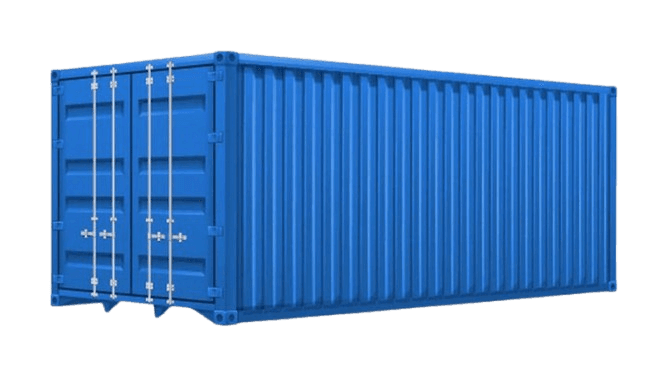

20′ Standard		5,898	2,352	2,385	2,340	2,280	6,058	2,438	2,591	33.2	2,300	24,000

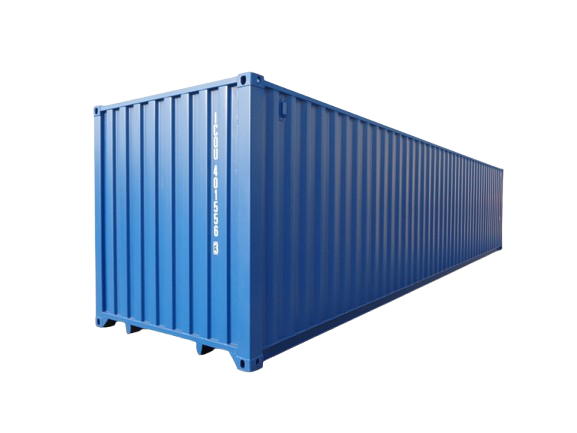

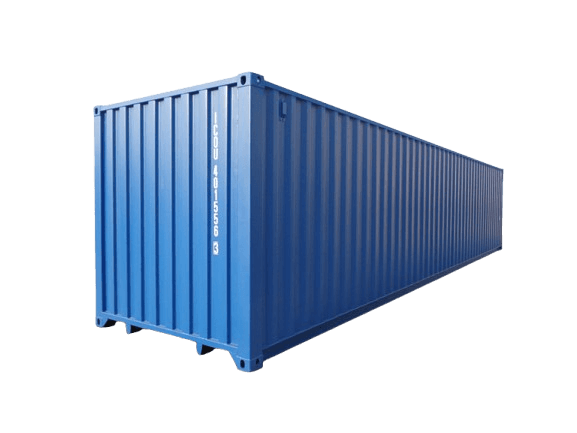

40′ Standard		12,032	2,352	2,385	2,340	2,280	12,192	2,438	2,591	67.7	3,700	30,480
20′ High Cube		5,898	2,352	2,698	2,340	2,580	6,058	2,438	2,896	37.4	2,400	24,000
40′ High Cube		12,032	2,352	2,698	2,340	2,580	12,192	2,438	2,896	76.4	3,800	30,480
20′ Reefer		5,456	2,286	2,265	2,286	2,265	6,058	2,438	2,591	28.4	3,040	27,000

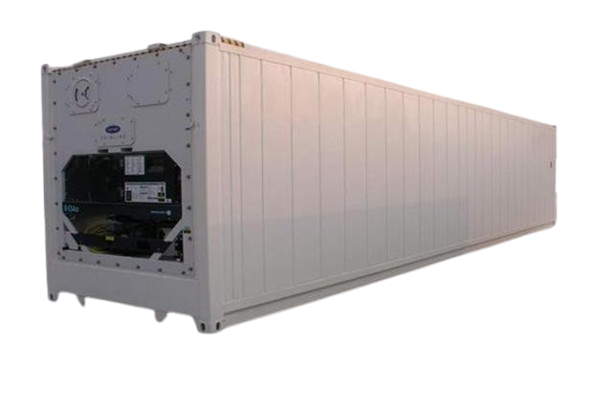

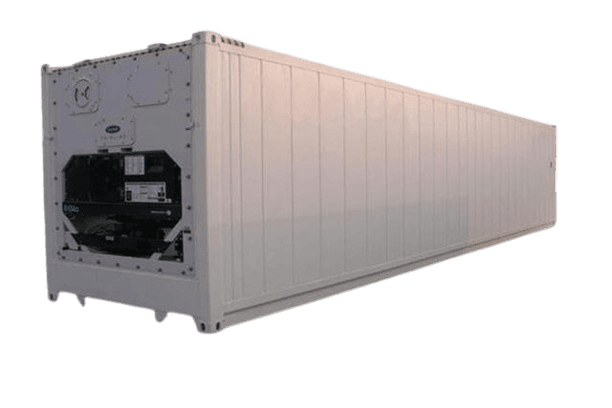

40′ Reefer		11,582	2,286	2,494	2,286	2,494	12,192	2,438	2,591	57.3	4,400	29,500

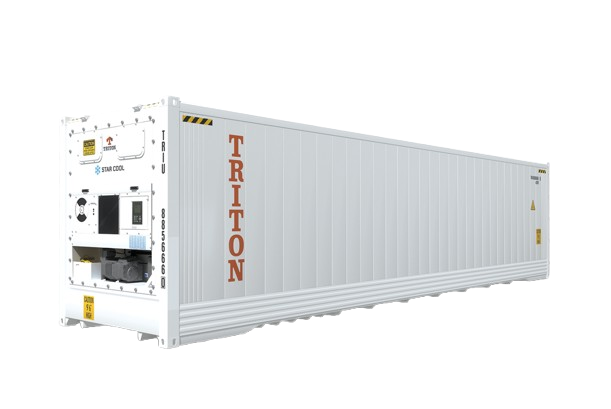

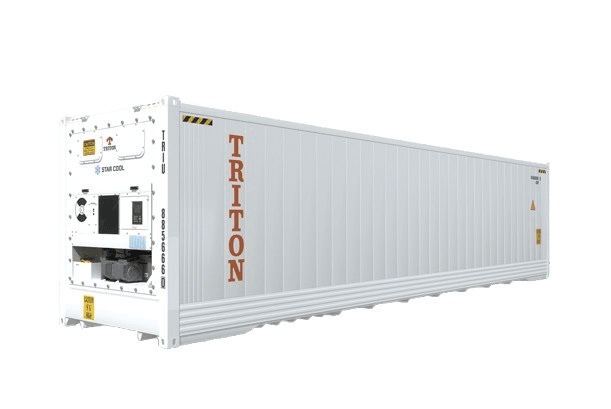

40′ Reefer High Cube		11,572	2,286	2,557	2,286	2,557	12,192	2,438	2,896	67.5	4,520	29,500
20′ Open Top	N/A	5,890	2,350	2,340	2,340	2,300	6,058	2,438	2,591	32.0	2,200	28,280
40′ Open Top	N/A	12,010	2,350	2,340	2,340	2,300	12,192	2,438	2,591	66.0	3,700	30,480
20′ Flat Rack	N/A	5,940	2,400	2,100	N/A	N/A	6,058	2,438	2,591	N/A	2,740	31,260
40′ Flat Rack	N/A	12,130	2,400	2,100	N/A	N/A	12,192	2,438	2,591	N/A	5,000	40,000
20′ Flat Rack Collapsible	N/A	5,940	2,400	2,231	N/A	N/A	6,058	2,438	2,591	N/A	2,360	30,000
40′ Flat Rack Collapsible	N/A	12,030	2,400	1,956	N/A	N/A	12,192	2,438	2,591	N/A	5,000	40,000
20′ Platform	N/A	N/A	N/A	N/A	N/A	N/A	6,058	2,438	N/A	N/A	2,740	31,000
40′ Platform	N/A	N/A	N/A	N/A	N/A	N/A	12,192	2,438	N/A	N/A	5,200	40,000
